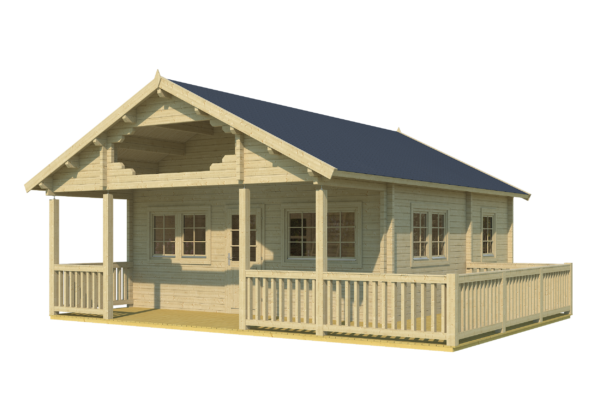

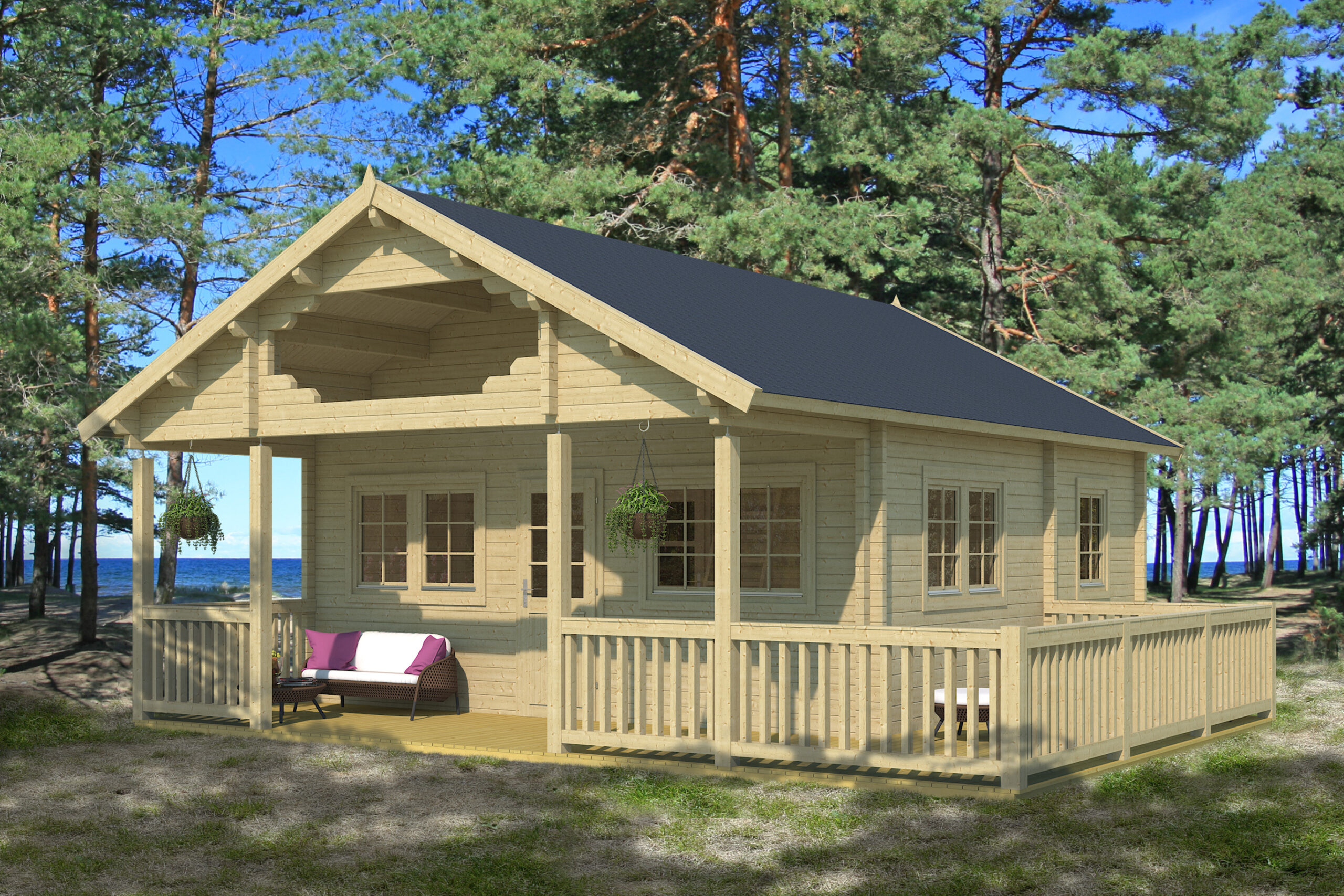

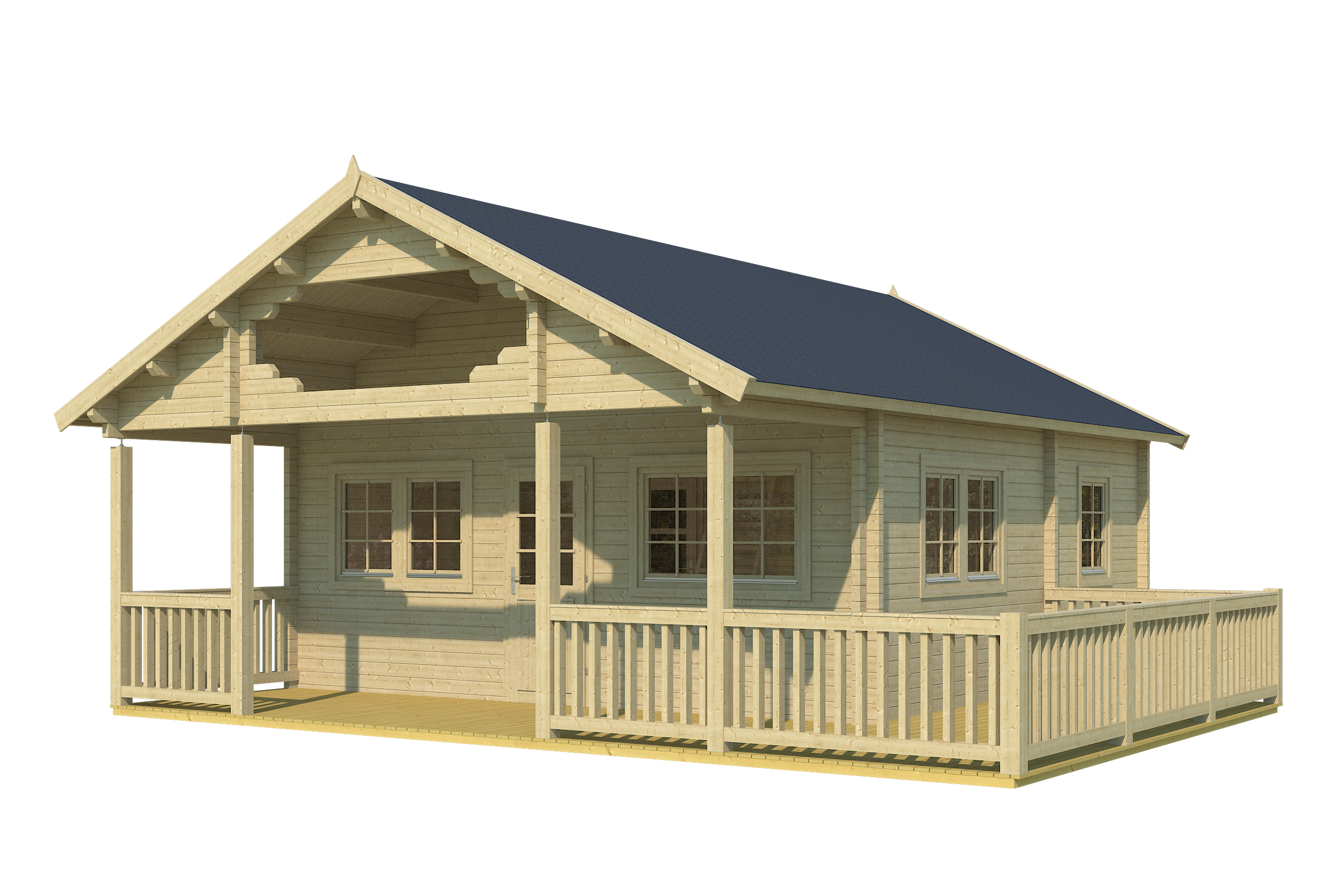

Log house Mantova 69 m2 with a sleeping loft
Shipping:
Wall external witdh: 595 x 595 cm
Wall Board Thickness: 70 mm
Includes a door and windows provided with a glazed unit and made from glued laminated timber, internal doors, stainless steel threshold, impregnated foundation beams, fasteners and installation instructions.
Error: Contact form not found.
Description
The 70 mm garden houses, log houses, shelters, pavilions, saunas, summerhouses, barbecue houses and timber garages manufactured in Tene factory of garden and timber houses come complete with doors, windows, floor, fasteners and installation instructions, making the construction of a garden house simple and time-saving.

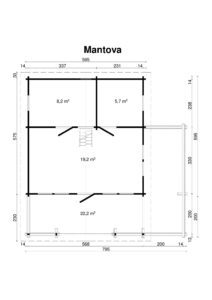

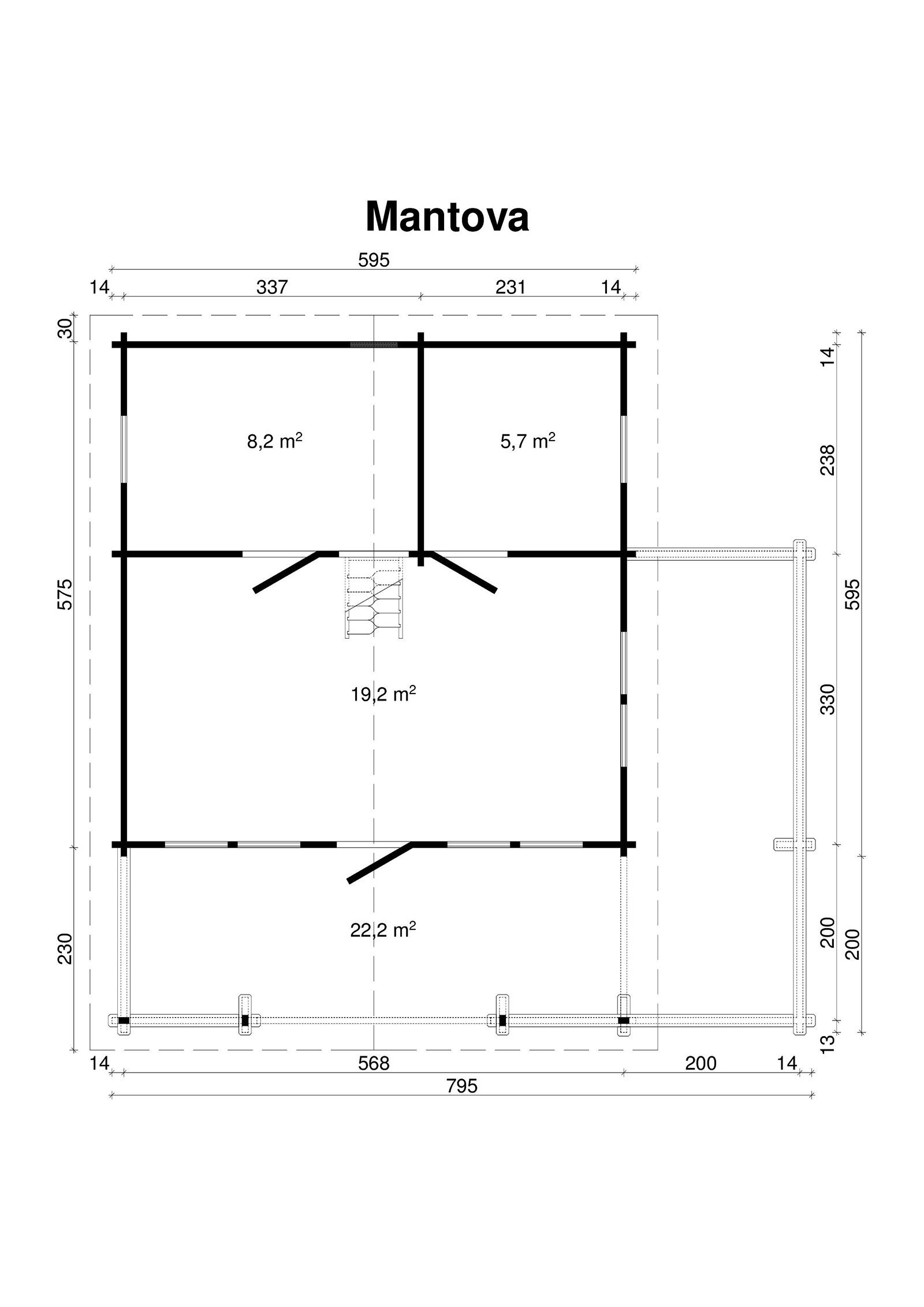

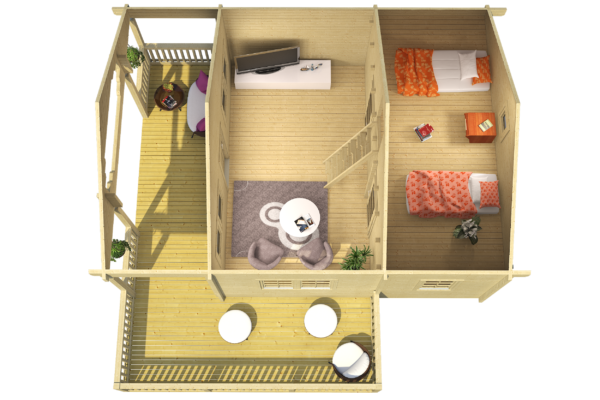

The set of a garden house with a wall thickness of 70 mm by TENE includes the following items according to the product drawing:
timber used is 100% Nordic quality spruce
doors and windows from extra-dry (8-12%) glued laminated timber
German-type tilt and turn windows with a glazed unit, including fittings
German-type door with a glazed unit, including fittings
ceiling made from 18 mm thick profile board
stainless steel threshold
threaded rods
foundation beams impregnated in an autoclave
fasteners (nails and screws)
installation instructions
Additional information
Walls
External Wall Dimensions
575 x 575 cm
Wall external witdh
595 x 595 cm
Wall Board Thickness
70 mm
Side Wall Height
251 cm
Roof
Roof Ridge Height
393 cm
Roof Area
60,9 m²
Roof Pitch
26°
Roof Board
18 mm
Canopy Transition
230 cm
Floor
Floor Area
33,1 + 22,2 = 55,3 ㎡
Floor Board
-, 18 mm, 28 mm
Other
Double-Glazed Window
1 x 530 x 530 mm ISO / 2 x 765 x 990 mm ISO / 3 x 1530 x 990 mm ISO
Glued Laminated Timber Door with Double Glazing
1 x 840 x 1955 mm ISO / 2 x 840 x 1955 mm
House capacity
ca. 101 m³
Pressure-Treated Foundation Beams
60 x 70 mm
Package Information
Product Package Dimensions
600 x 120 x 85 cm600 x 120 x 82 cm600 x 120 x 71 cm
Product Package Weight
ca. 5350 kg
×
